Basic Info.
Product Description
| Model NO | CR-1 | Dimension(L*W*H) | Customized |
| Material of panels surface | Color Steel Plate/Stainless Steel | Copper tube connector | Fitting reducer |
| Voltage | 380V460V220V customize | Controller | Automatic electric controller, PLC |
| Refrigerant | R404a R22a R134a | Quality Assurance | 2.6Mpa leak-proof stress test |
| Door type | Swing Door/Sliding Door/Double Door | Cold room compressor type | Piston, screw, scroll etc |
| use nature | Fresh Keeping Freezing | Trademark | Only kem |
| Density of panel | 40-42kg/Cm3 | Certification | ISO CE |
| Core material | PplyYurethane Foam | Temp of room | -60°C~+20°C optional/Customization |
| Fittings | All necessary fittings are included, optional |
1.Thickness: 50/75/100/120/150/200
2.Surface: Color steel(PPGI), stainless steel, aluminum
3.Advantages: Fireproof/Insulation/Waterproof/Easy Install/Lightweight
4.Density: 45±KG/m3
1.Perfect sealing
2.Reliable, safe and easy to operate

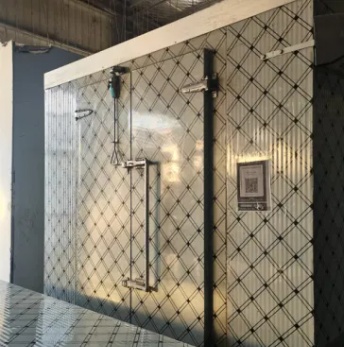

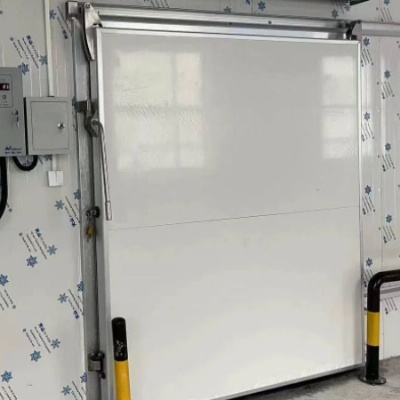

3.Cold Room Door Series: hinged door,sliding door,swing door,replaced door
4.Replaced Door: Whether you want to replace the original door or open a new door of the old cold room.
•Compressor Optional:
1-Hermetic Scroll
2-Semi-hermetic or Screw
•Condenser:Air cooled or Water cooled
•Frame:can be stell shell with spray painting or open type on stell frame
•Refrigerant:R404a/R410a
•Capacity:Singe compressor 2HP-50HP
| Use nature/Suitable for | Tempreture range |
| Fruit ripening | >25C |
| Processing room | 12~19C |
| Fruit, vegetable, dry food | -5~+10C |
| Medicine, cake, pastry, chemical material | 0C~-5C |
| Ice storage room | -5~-10C |
| Fish, meat storage | -18~-25C |
| Deep freezer, low temperature storage, quick-freeze, blast freezer | -25C~-40C |
In your inquiry, kindly including follow details, we will send you accurate quote
1. What products will store in cold room? How many products will be kept in cold room?
2. What the temperature of cold room do you need?
3. What the voltage can you support?
4.What is the cold room dimensions ?
5.Which country to use the cold room ?
6. EXW/FOB/CIF price ?
we can provide a detailed data sheet for each refrigeration system.if you need it,kindly contact us to get it.
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage

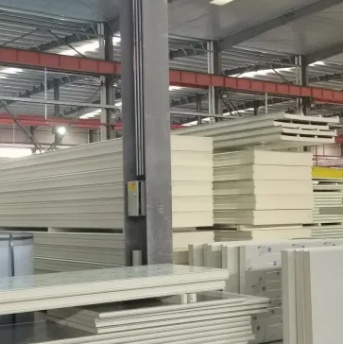

The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking

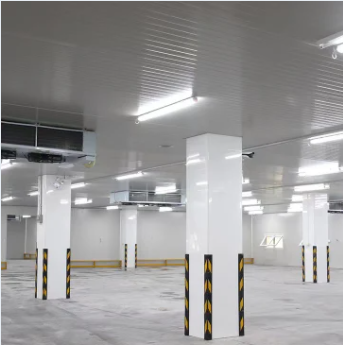

Freezer room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and the thickness of the material according to the requirements of panel products.
1. Q: Are you a manufacturer?
A:A: Yes, we are manufacturer. Non-standard customization and OEM service are both welcomed and available.
2.Q: Can I get the warranty?
A: Yes, under the condition that the user apply the equipment correctly, we provide 1 year quality warranty.
3.Q: How to pay?
A: 30% of total amount to be paid before production, and the balance payment before shipment.
4.Q: How to ship?
A: We work with experienced shipping agent who could arrange your delivery on the cheapest and fastest way. Our closest port is Ningbo/ShangHai.
5.Q: What about the delivery date?
A: 10-30 days, depends on the order.
6.Q: What about the maintenance?
A: All the products are tested before shipment, and maintenance is easy. We provide patient pre-sale service and considerate after-sale service.
7.Q: Do you have any Certificate?
A: Yes. we have ISO9001 certificate. If you need any other Certificate, we can help you to get it.
8.Q: Can I get guarantee of products?
A: Yes, every cold room is 10 years quality warrantee under customer correct using the products.
9.Q:How long is the lead time?
A:Usually for units we need 35 days to produce. If it is a special voltage of 60hz, the production time needs to be extended by 5-10 days. Panels and other things usually we need 7-20 days depends on amount.
